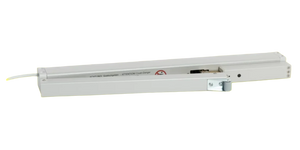

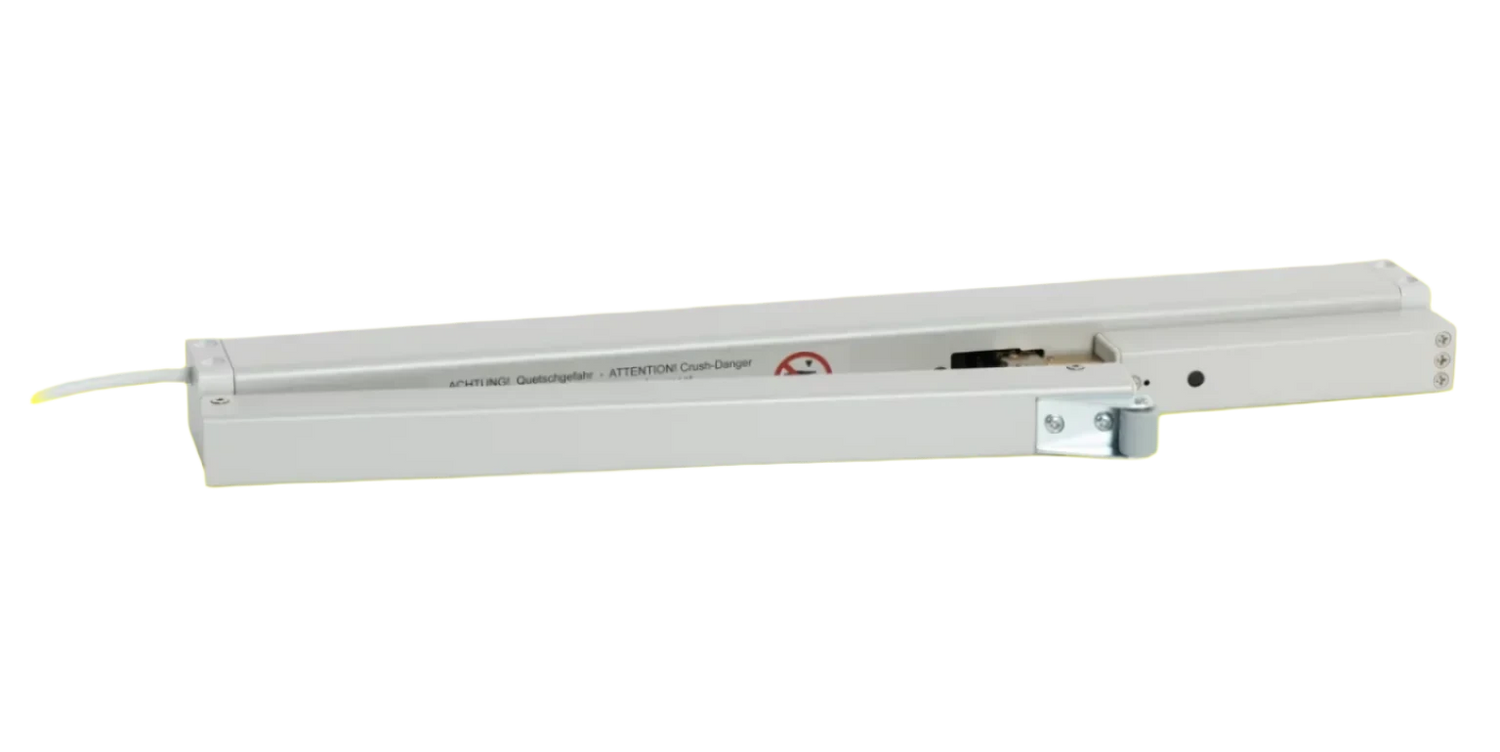

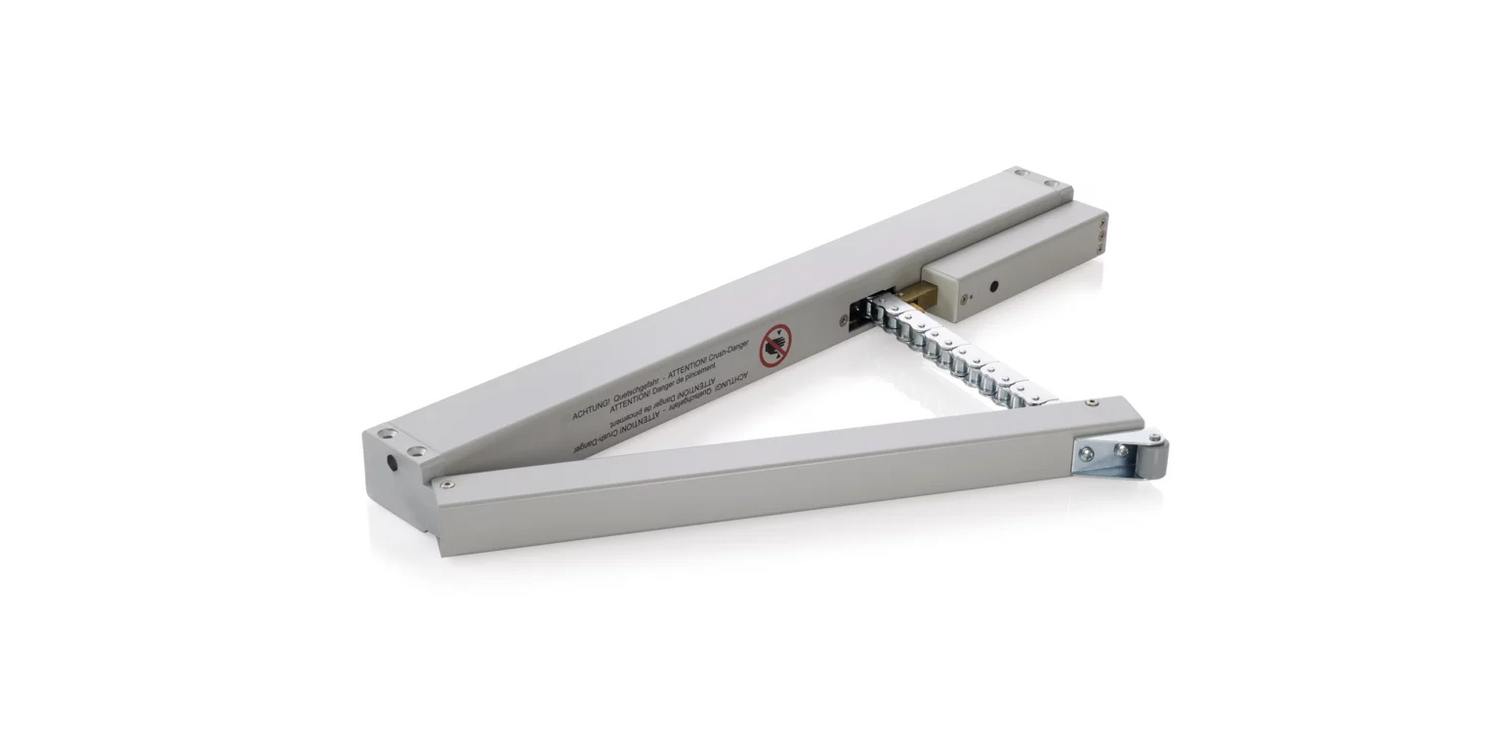

D+H DDS 54 Door Opener Drives, 24v, 500mm, 500N

With a pressure force of 500 N, the DDS 54 opens your doors up to max. 90° and thus also makes escape routes accessible.

Features:
● Opening single-leaf doors up to max. 90°
● With microprocessor-controlled motor electronics
● High pressure force due to special chain stabilization
● Control output for electronic door release by customer
● Ensures the necessary supply air and open escape routes
● Door remains manually operable
● Automatic motor lock, type Ikon or Ehem, can be combined
● Drive functions and various drive parameters programmable
● Additional passive and active anti-pinch system for the main closing edges
● Bracket set included
● Supply: 24 V DC / ±15 % / 1 A
● Duty cycle: 30
● Compressive force: 500 N
● Tensile force: 500 N
● Lifetime: 20000 double strokes
● Running speed OPEN: 11,8 mm/s
● Running speed CLOSED: 11,8 mm/s
● Protection class: IP 32
● Emission sound pressure level: LpA ≤ 70 dB(A)
● Temperature range: -5 °C ... +75 °C
● Temperature stability: B300 (30 min / 300 °C)
● Housing: Aluminum
● Surface: Powder-coated
● Connection: 2.5 m silicone cable
●W x H x D: 522 x 40 x 80 mm

**Ensure AOV windows already installed which require actuators are tested in accordance with BS EN 12101 : Part 2, with the necessary CE mark. Inbuild Online supplies a range of D+H actuators complying with BS EN 12101 : Part 2. The AOV window frame manufacturer should have tested with the D+H range as part of the CE mark for the window. Where requested, Inbuild Online can supply a BS EN 12101 Part 2 AOV window at an additional cost.

Any advice or recommendation given by Inbuild Online to the Buyer or its employees or agents as to the application or use of the Goods is followed or acted upon entirely at the Buyer’s own risk and accordingly the Seller shall not be liable for any such advice or
recommendation. Please satisfy yourself that the goods stated are suitable for the application intended. We recommend that you consult with the relevant approving bodies to gain approval prior to its application.
