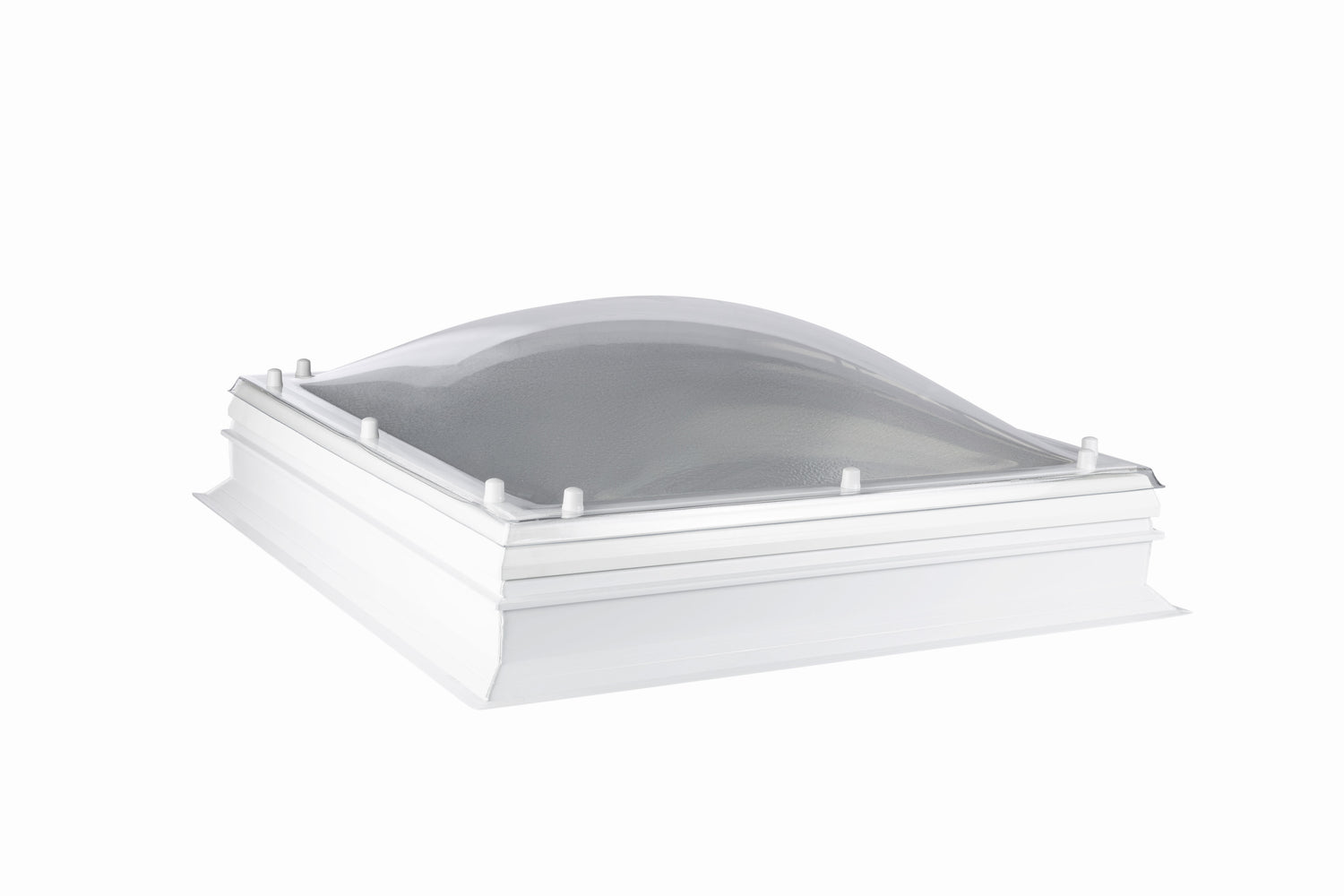

Coxdome AOV Fixed Polycarbonate - Dome With 150mm Box Section

Available with clear or obscure polycarbonate glazing to enhance the building’s natural daylight, or with a fully insulated aluminium solid cover.

The COXDOME SHEV (AOV) range is available in a wide range of sizes and complies with the latest building regulations on fire safety and can be integrated into any Building Management System (BMS). Linked to a central control panel, control panels can be triggered from either manual override switches local to the ventilator and the ground floor by dedicated smoke detectors, or by interfacing with a third-party smoke detection/fire alarm system . The BMS is complete with battery backup in case of mains failure.

For product information, lead times and pricing of Vertical Upstands, please contact the customer service team.

Key Benefits:

• Smoke and heat exhaust ventilation solution for all commercial and residential applications
• Supplied factory assembled and factory tested
• Provides smoke extraction in the event of a fire
• The motor can be offset to provide access as well as smoke ventilation
• Provide day-to-day controllable ventilation
• Complies with the latest building regulations on fire safety
• Can be integrated into any Building Management System
• Central control panel complete with battery backup in case of mains failure
• Available with clear or obscure polycarbonate glazing to enhance the building’s natural daylight
• Suitable for installation on a roof pitch between 0° and 15°

• EN12101-2 certified
• Available from 700mm to 1200mm and 700mm to 2250m

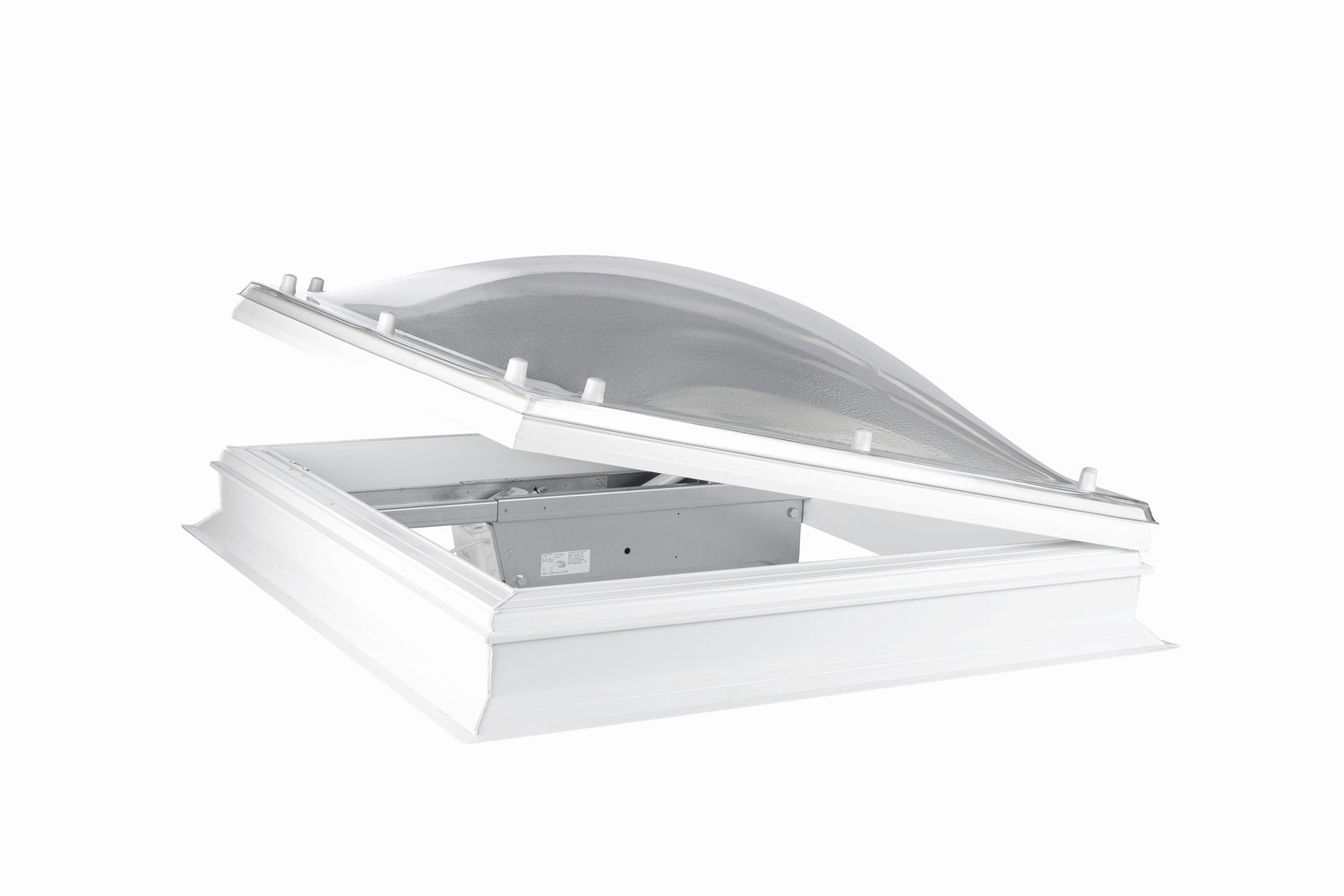

• Opens to 140º
• Galvanised steel mechanism
• Glazed polycarbonate or solid aluminium cover
• Extremely low noise level
• Compact 24V motor unit
• Aerodynamic free area up to Aa0.68m2
• Snow load up to 600N/m²
• Wind load up to 1500N/m²
• Low ambient temperature T(-15°)
• Heat exposure B300
• Reaction to Fire Class E
• Opening speed <60 secs
