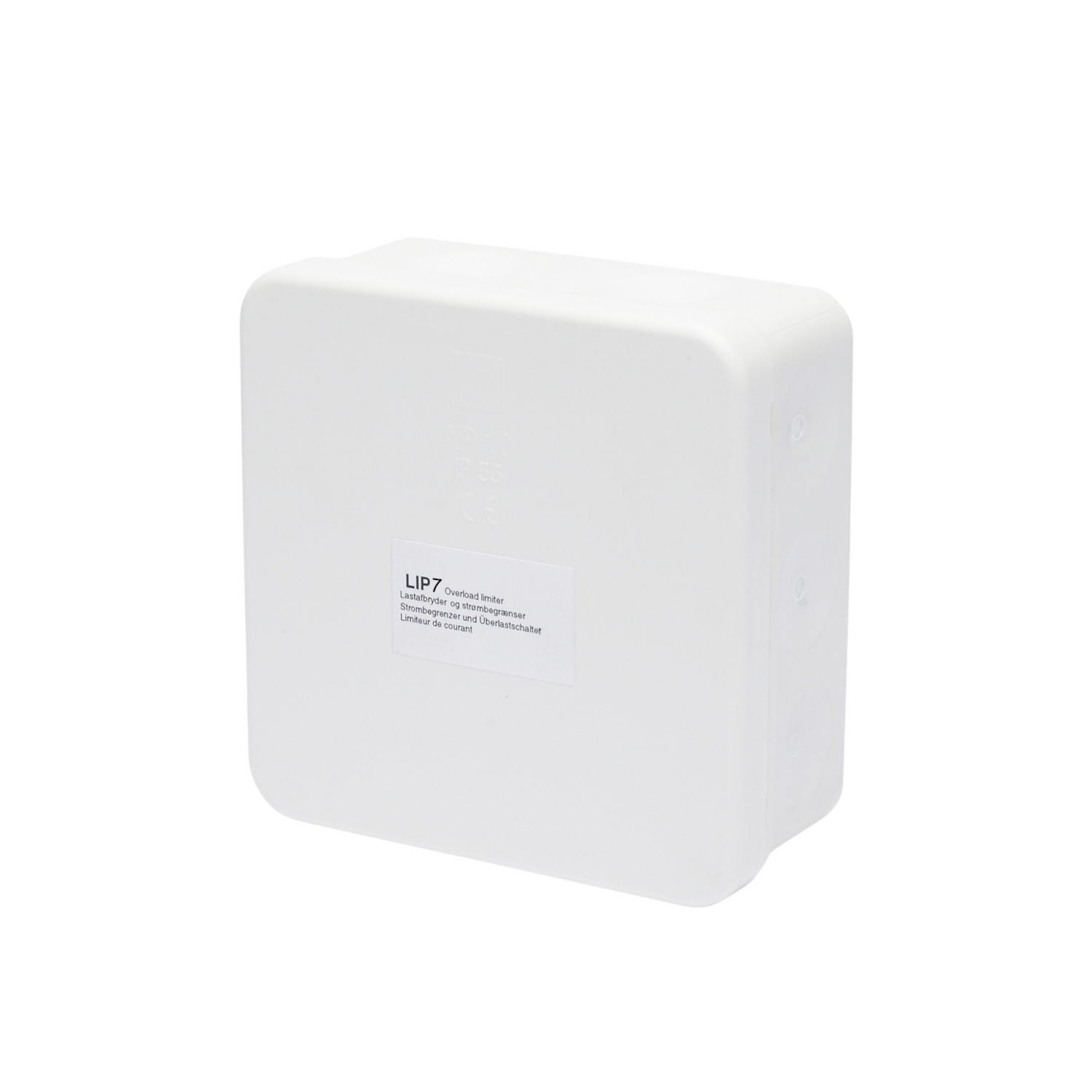

Actulux Lip 7 roof vent current limit PCB connection box (replacement for failed roof vent LIP5) 24/36/48v

LIP7 is an advanced electronic product that is used as current limiter and overload unit between a 24-36-48VDC supply and for 1 actuator (motor).
When setting for the current limiter is reached because of the actuator load, and the load on the actuator is further increased, then the actuator speed is automatically
reduced, so that the current consumption does not exceed the set level.
A heat resistant silicone cable is mounted as supply line.
LIP7 is available in 3 versions:
LIP7 Basis, LIP7 Tandem and LIP7 Open / Close.

LIP7 BASIS #121305
1 channel actuator protector - replaces LIP5.

LIP7 TANDEM #121306
1 channel but now with the opportunity to operate in
Tandem / Synchro mode with another LIP7 if 2 pcs. of
opening systems are mounted in the same window or
skylight to prevent damage to the window or skylight. The
system stops if power to one motor disappears.
There is also an opportunity to operate in Synchro mode
where both systems are running exactly with the same
speed without delay.
Synchro mode requires that the electrical actuators in the
opening system is mounted with “reed switches” for speed
/ position indication.

LIP7 OPEN/CLOSE #121308
Same features as the LIP Tandem but also with clamps for
Open / Close indication of the window or skylight.
Open / Close indication and Synchro mode requires that
the electrical actuators in the opening system is mounted
with “reed switches” for speed / position indication.
