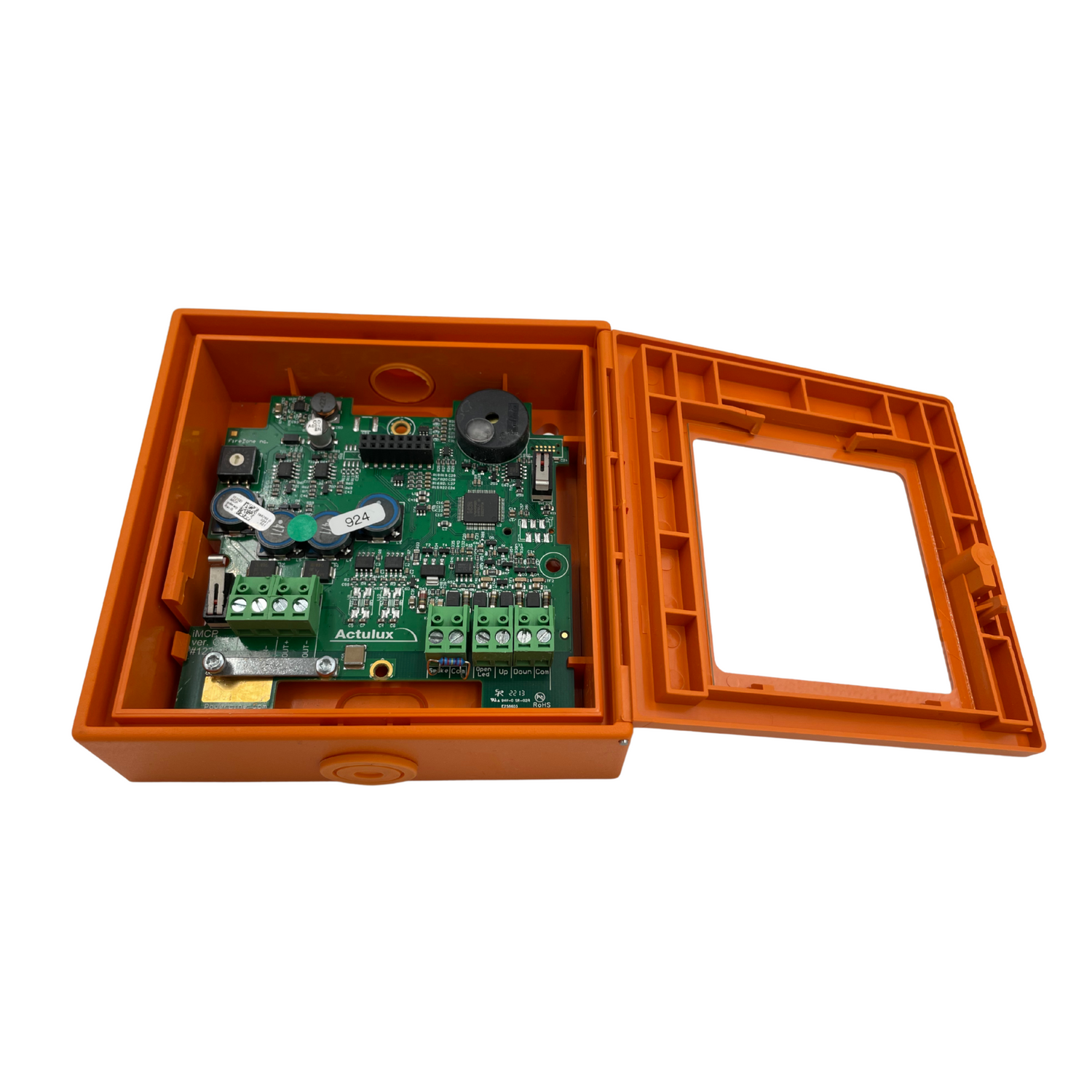

Actulux iMCP Primary IP30 in Orange, for SVL - Addressble MCP wiring in 2 core ring

EASY INSTALLATION AND OPERATION
The fire switch is easy to install and operate. It is developed to be used only together with Actulux SVL Control Panels on the Powerline communication.

INDICATION ON FRONT PANEL (LED BOARD):
Green Ok LED = the actual zone is ok.
Yellow Fail LED = the actual zone is in fail.
Red Alarm LED = the actual zone is in alarm.
Blue LED = the smoke vent is open or closed.
Individual zone reset is possible directly at the Fire Switch.

OPERATION INSTRUCTIONS
During fire: Break the glass and activate the red button.
During test: Open the lid and activate the red button.
Closing and alarm reset: Open the lid - activate the
reset button, alarm is reset and skylights will close.
The output for open indication can also be used with
the comfort switch:
Item no. 111943: Comfort Switch, 1 zone w/blue LED
The fire zone is set by a rotary switch inside the iMCP (max. 16 zones).
On Primary version, inputs for detector and comfort switch are available
