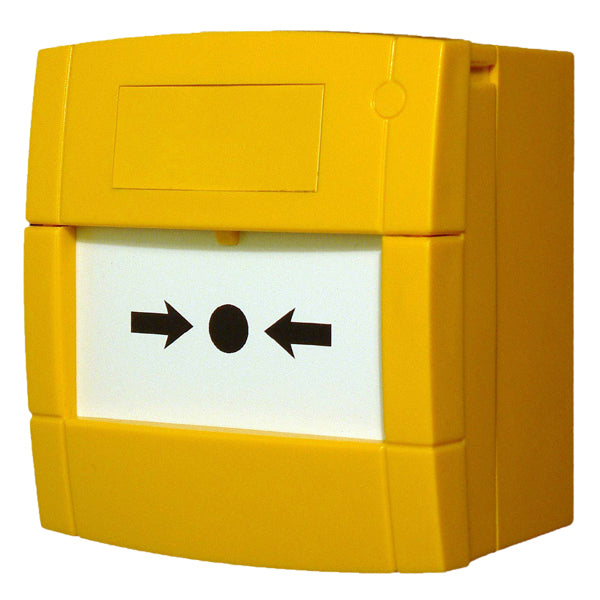

KAC Yellow Call Point

This is the KAC MUS3A-Y000SG11 Yellow Call Point, SPCO, Open/Close 30V with resettable element. A simple, colourful manual operation unit for a fire alarm system. Available as a resettable unit or a break-glass unit, and in a variety of colours. Installation efficiency and flexibility are at the heart of the new MCP indoor call point range.
Installation time and ultimately cost, are of paramount importance to any fire or security installer. The MCP range directly reflects this need by providing a unique plug and play concept designed specifically to reduce installation time. All new MCP products utilise a special terminal block, where all initial installation cabling is terminated. This terminal block is then simply connected to the back of the MCP. Simple, but effective with no re-termination required and no time wasted.
Both break glass and resettable operating elements can now be used within a manual call point. To provide you with the greatest flex-ability, the new MCP range can be configured as either a break glass or resettable unit by simply changing from one element to another. No other additional parts or alternative products need to be ordered.
All MCP indoor call point products also help preserve the integrity of the overall system as illegal removal of the product lid will result in the call point operating and the system going into alarm.
This unit is designed to be either surface or flush mounted and comes with a surface backbox. This Yellow KAC Call Point comes complete with a frangible glass element and manual test key which enables the user to carry out a manual test without breaking the glass.

Features:
● E Colour: Yellow
● Surface Mounted (Comes with Backbox)
● Open or Closed Contacts (30V Rated)
● Part Number: MUS3A-Y000SG-11
● Contact Configuration: SPCO
● No. of Contacts: 1
● Size: 93mm x 89mm x 59.5mm
● Colour: Yellow
● Unique Plug & Play installation concept
● Total flexability in the choice of operating element
● Selectable Normally Open or Normally closed contacts
● Anti-tamper facility
● Enhanced aesthetics
● Backward compatibility
● Resettable unit or Break Glass unit available
● Available in a range of colours
● Weight: 0.16kg
