D+H KA Chain Actuator Brackets Inwards Opening

Features:
● For surfaced mounting, Tilt window inward opening.
● Remove locking latches and replace fittings (at hoppers), which limit
opening width, by safety shears.
● The stiff backside of the chain (cable outlet on top) must point upward in
case of mounting on a turning sash.
● Underfill lateral drive brackets, when wing step to window
frame is >20mm.

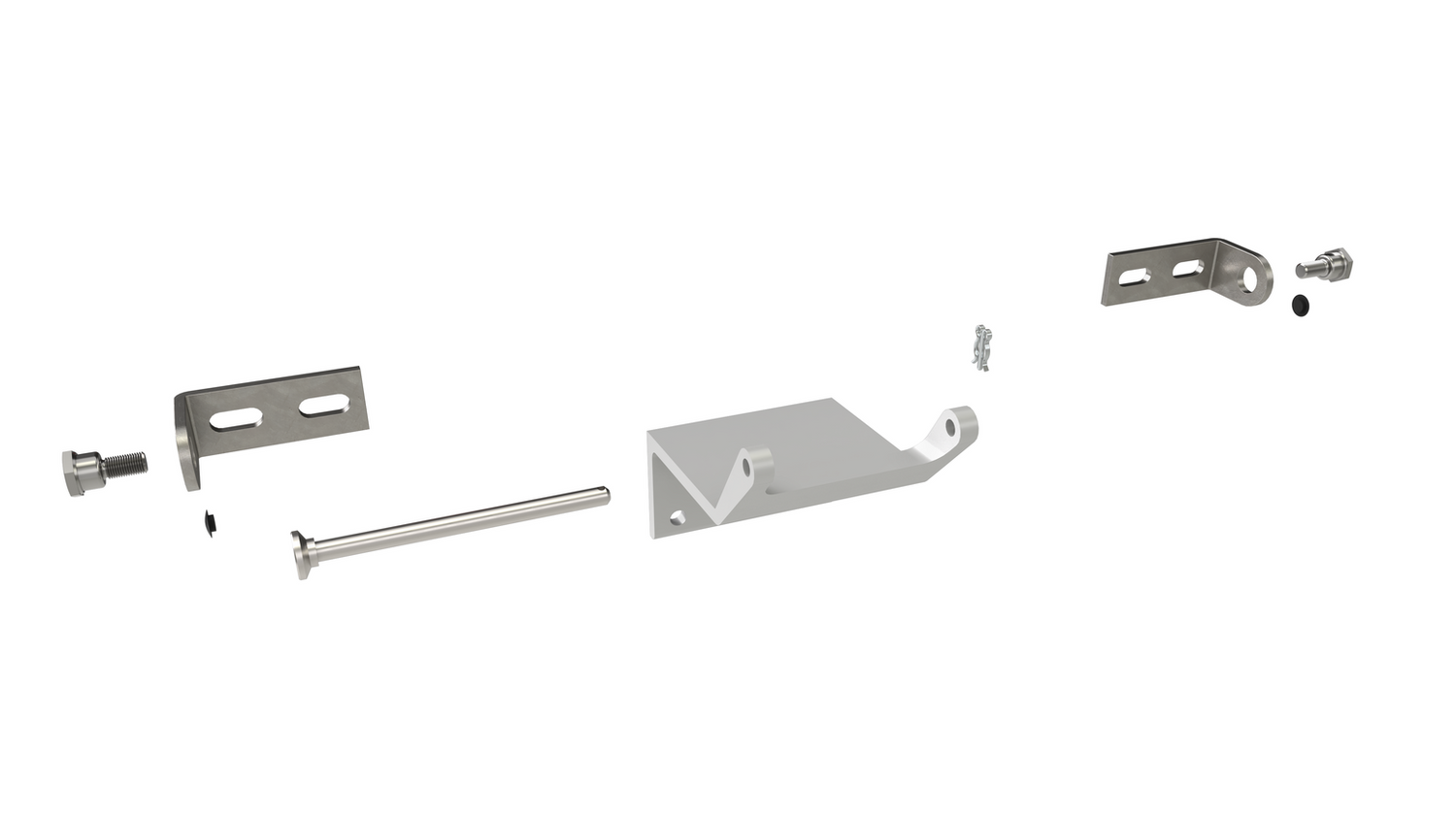

● Bracket set for KA34 and KA54 for mounting on frame.

**Ensure AOV windows already installed which require actuators are tested in accordance with BS EN 12101 : Part 2, with the necessary CE mark. Inbuild Online supplies a range of D+H actuators complying with BS EN 12101 : Part 2. The AOV window frame manufacturer should have tested with the D+H range as part of the CE mark for the window. Where requested, Inbuild Online can supply a BS EN 12101 Part 2 AOV window at an additional cost.

Any advice or recommendation given by Inbuild Online to the Buyer or its employees or agents as to the application or use of the Goods is followed or acted upon entirely at the Buyer’s own risk and accordingly the Seller shall not be liable for any such advice or
recommendation. Please satisfy yourself that the goods stated are suitable for the application intended. We recommend that you consult with the relevant approving bodies to gain approval prior to its application.
